VERTICAL AND HORIZONTAL ASPHALT STORAGE TANKS

FOR ALL APPLICATIONS:

  • Hot Oil Coiled, Direct Fired or Electrically Heated
  • Standard tanks are equipped with 3.5 inches of fiberglass insulation and are covered with .032 stucco finished weatherproof aluminum covering
  • Exterior ladders are caged and OSHA approved on vertical tanks
  • All tanks have internal ladders and one large manway on top of the unit
  • Vertical tanks have an additional large side mounted manway for easy access
  • Tank heating coils are longitudinal serpentine for maximum heat transfer efficiency. An oil-flow valve and temperature controller are included
  • The internal vent and overflow provide added safety
  • Vertical tanks includes a board-type level indicator
  • Pearson asphalt storage tanks provide years of efficient reliable service

TANK TOP AGITATION FOR POLYMER ASPHALT PRODUCTS AND EMULSIONS

  • Tanks for agitation include four vertical baffles to insure total product movement throughout the entire tank
  • Tank top agitators ensure consistent product quality, eliminating component segregation
  • Each agitator has a solid steel shaft and three sets of four impellers
  • All motors are TEFC, NEMA foot mounted and are available off the shelf
  • A heavy duty single worn reducer provides the correct output speed
  • Helical gears can be changed out
  • Electrical tie-in to tank temperature can be supplied to protect agitator from damage due to product viscosity

Contact your Pearson Area Dealer or Contact Pearson directly to help you size which asphalt storage tank model is right for you.

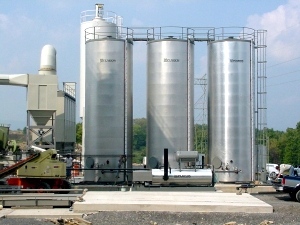

3 x 30,000g Coiled Tanks & Hot Oil Heater

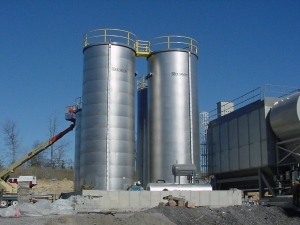

2x 30,000g 1x 20,000g Coiled Tanks & 15,000g Fuel Tank


P-30C 30,000g Split Compartment 15,000g-15,000g Split




P-30C & PH-1500 30,000g Portable

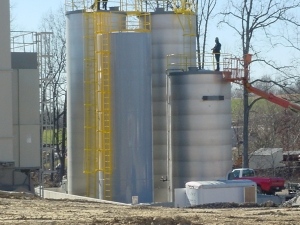

Asphalt Tank Farm




2,000g Additive Tank.JPG




1,000g Vertical Additive Tank
